Güvenlik Kameraları

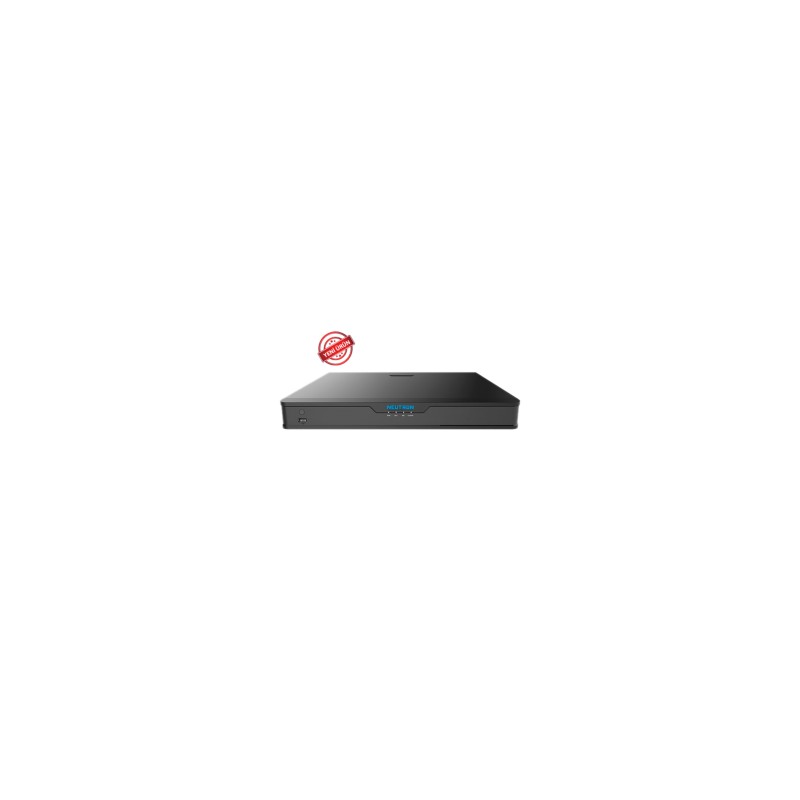

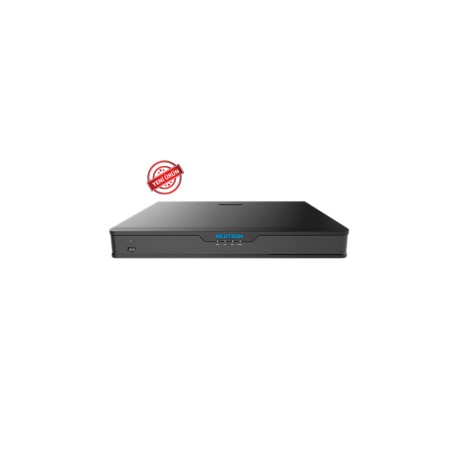

Neutron 16 Kanal NVR Kayıt Cihazı
Ürün Kodu: NVR302-16Q
İşyeri ve Ev kamera sistemleriyle mekanlarınızı hırsızlık ve yetkisiz giriş gibi kötü niyetli girişimlere karşı koruma sağlar..
Hemen Arayın - Ücretsiz Fiyat Alın
+90 532 266 6460
Daha Fazla Bilgi
16 Kanal 1-SATA Ultra 265/H.265/H.264 NVR
| Model | NVR302-08Q | NVR302-08U | NVR302-16Q | |
| Video/Audio Input | ||||
| Analog Video Input | 8-ch, BNC | 8-ch, BNC | 16-ch, BNC | |
| IP Video Input | 4-ch(only IP up to 12ch), each channel up to 4K | 8-ch(only IP up to 16ch), each channel up to 4K | 8-ch(only IP up to 24ch), each channel up to 4K | |
| Supported Analog Camera Types | Support AHD input: 8MP@15fps (channel1-channel2) 5MP@20fps 4MP@30fps 3MP@30fps(channel1 - channel2) 1080P@30fps 720P@60fps Support TVI input: 8MP@15fps(channel1-channel2) 5MP@20fps 4MP@30fps 3MP@20fps (channel1 - channel2) 1080P@30fps 720P@60fps Support CVI input: 8MP@15fps(channel1-channel2) 4MP@30fps 1080P@30fps 720P@60fps Support CVBS input | Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 3MP@30fps 1080P@30fps 720P@60fps Support TVI input: 8MP@15fps 5MP@20ps 4MP@30fps 3MP@20fps 1080P@30fps 720P@60fps Support CVI input: 8MP@15fps 4MP@30fps 1080P@30fps 720P@60fps Support CVBS input | Support AHD input: 8MP@15fps(channel1-channel4) 5MP@20fps 4MP@30fps 3MP@30fps (channel1 -channel4) 1080P@30fps 720P@60fps Support TVI input: 8MP@15fps(channel1-channel4) 5MP@20fps 4MP@30fps 3MP@20fps (channel1 - channel4) 1080P@30fps 720P@60fps Support CVI input: 8MP@15fps(channel1-channel4) 4MP@30fps 1080P@30fps 720P@60fps Support CVBS input | |
| Audio Input | 1-ch, RCA | 4-ch, RCA | 1-ch, RCA | |
| Two-way Audio | 1-ch, RCA | 1-ch,RCA | 1-ch, RCA | |
| Channel Associated Audio | 1-ch,RCA | 4-ch, RCA | 1-ch,RCA | |
| Network | ||||
| Incoming Bandwidth | 56Mbps | 80Mbps | 72Mbps | |
| Outgoing Bandwidth | 64Mbps | 64 Mbps | 80Mbps | |
| Remote Users | 128 | |||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE | |||
| Video/Audio Output | ||||
| CVBS Output | 1-ch, BNC | 1-ch, BNC | 1-ch, BNC | |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |||
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | 4K(3840X2160)/60Hz，4K(3840X2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF | |||
| Audio Output | 1-ch, RCA | |||
| Synchronous Playback | 8-ch | 8-ch | 16-ch | |
| Encoding | ||||
| Recording Frame Rate | Main stream: 8MP Lite@8fps(channel1-channel2） 5MPLite@12fps 4MP Lite@15fps 3MP@15fps(channel1 - channel2) 2MP@15fps 720P@30fps Sub stream: D1@30fps(Max) | Main stream: 8MP@8fps 5MP@12fps 4MP@15fps 3MP@18fps 2MP@25fps 720P@30fps Sub stream: D1@30fps(Max) | Main stream: 8MP Lite@8fps（channel1-channel4） 5MP Lite@12fps 4MP Lite@15fps 3MP@15fps(channel1 - channel4) 2MP@15fps 720P@30fps Sub stream: D1@30fps(Max) | |
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H /4CIF/CIF | 8MP/5MP/4MP/3MP/1080P /960P/720P/960H/4CIF/CIF | 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H /4CIF/CIF | |
| Hard Disk | ||||
| SATA | 2 SATA interface | |||
| Capacity | up to 10TB for each HDD | |||
| External Interface | ||||
| Network Interface | 1RJ45 10M/100M self-adaptive Ethernet Interface | 1RJ45 10M/100M/1000M self-adaptive Ethernet Interface | ||
| USB Interface | Rear panel 1 x USB2.0,Front panel 1xUSB2.0 | Rear panel 1 x USB3.0,Front panel 1xUSB2.0 | ||
| Serial Interface | 1 x RS485 | |||
| Alarm In | - | 8 | - | |
| Alarm Out | - | 4 | - | |
| General | ||||
| Power Supply | 12V DC Power Consumption: ≤ 8 W( without HDD ) | 12V DC Power Consumption: ≤ 12 W( without HDD ) | ||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |||
| Dimensions(W×D×H) | 380mm ×315mm× 53mm (15" × 12.4"×2.1") | |||
| Weight ( without HDD ) | ≤1.9 Kg ( 4.19lb ) | |||
